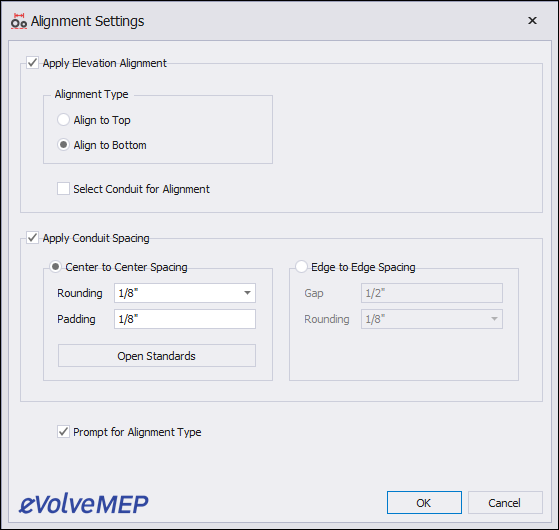

Alignment Settings

Apply Elevation Alignment

Allows conduits to align to the top or bottom of a specified edge or conduit.

  • Align to Top - adjusts selected conduits to the outer upper point of a specified edge or conduit.

  • Align to Bottom - adjusts selected conduits to the outer lowest point of a specified edge or conduit.

  • Select Conduit for Alignment - adjusts selected conduits to another's conduits edge within the row.

Apply Conduit Spacing

Allows for rows of conduits to be spaced as defined within the Center to Center Spacing panel or the Edge to Edge Spacing panel.

  • Center to Center Spacing - Applies spacing based on the conduit's center point.
    • Rounding - rounds the spacing designated in the Horizontal Spacing Configuration grid to the nearest specified value.
    • Padding - applied before rounding, the specified value is added to the values in the Horizontal Spacing Configuration grid.
Horizontal Spacing Configuration

The Horizontal Spacing Configuration window contains a grid populated with predefined values used to determine the center to center spacing of conduits. to modify the values, simply click into a cell, highlighting the current values, enter desired values and click OK or Apply. The spacing configuration may also be exported/imported to share with colleagues.

  • Open Standards - Launches the conduit spacing configurator. When Center to Center Spacing is selected, conduits are spacing from center point to center point based on the values in the Horizontal Spacing Configuration grid.

  • Edge to Edge Spacing - applies the spacing from the perimeter of one conduit to another.
    • Gap - the specified value determines the spacing between conduits.
    • Rounding - applied after the Edge to Edge spacing, the center to center dimension is increased to the specified value.

Prompt for Alignment

If checked, when the alignment is complete, a window is displayed allowing the user to change the alignment type before continuing.

Both Apply Elevation Alignment and Apply Conduit Spacing must be checked to enable Prompt for Alignment.
