Assigning a Location

Assign Location

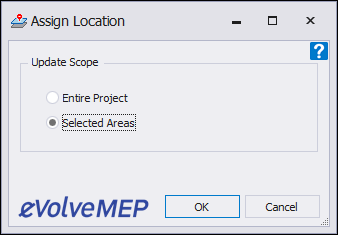

Once a location has been created, the Assign Location feature will assign a parameter value (specified within settings) to the eV_LBS_Id project parameter for all parts modeled within that location. This function can be applied to the entire project, selected locations, or picked from a list of existing locations.

Updating elements from existing locations

Elements can have their Location Ids assigned from a list of available locations instead of having to find and select them from the model.

Note: only active locations(Layout =Yes) will appear in the grid. Changes to the Existing Locations grid are saved to the workstation and will persist when switching projects. To reset to the default state, right-click in the upper left corner of the grid.
