Set Angle

Set Angle

The Set Angle function is used to set a predefined angles and also allows to specify a specific rotate angle. The Rotate X,Y, and Z buttons utilize the specified angle and may be used from either the eVolve Electrical ribbon or the contextual ribbon.

Rotate

The Rotate button will allow you to rotate elements on a fixed axis.

Rotate X

The Rotate X button utilize the specified angle and may be used from either the eVolve Electrical ribbon or the contextual ribbon.

Rotate Y

The Rotate Y button utilize the specified angle and may be used from either the eVolve Electrical ribbon or the contextual ribbon.

Rotate Z

The Rotate Z button utilize the specified angle and may be used from either the eVolve Electrical ribbon or the contextual ribbon.

When rotating an element from a 3D view, the project’s orientation dictates the X,Y, and Z rotation. The project’s orientation can easily be determine based on the view cube.  The X axis runs from Left to Right, the Y axis runs from Front to Back, and the Z axis runs from Top to Bottom.

When rotating from a plan view, the axes are rotated based on the orientation of the view regardless of the project's orientation.

To set an angle

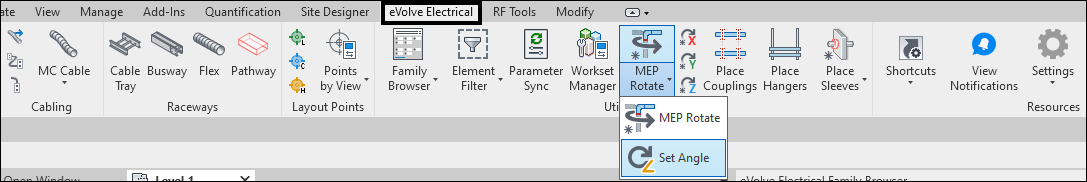

  1. From the ribbon, click Set Angle from the Utilities panel.
  2. From the Set Angle window, enter a value in the Angle dialog box or click the menu to select a predefined angle and click OK.
  3. From the drawing area, select an element, assemble, or group, then click one of the Rotate X,Y, or Z buttons.
