Point Manager

Placing point(s) with the Point Manager is the most precise method of placing points as the X, Y, Z coordinates are specified instead of clicking an approximate location with the mouse. The Point Manager allows both control points and origin markers to be placed. In addition, various actions may be performed on a single or multiple points.

Place Layout Points

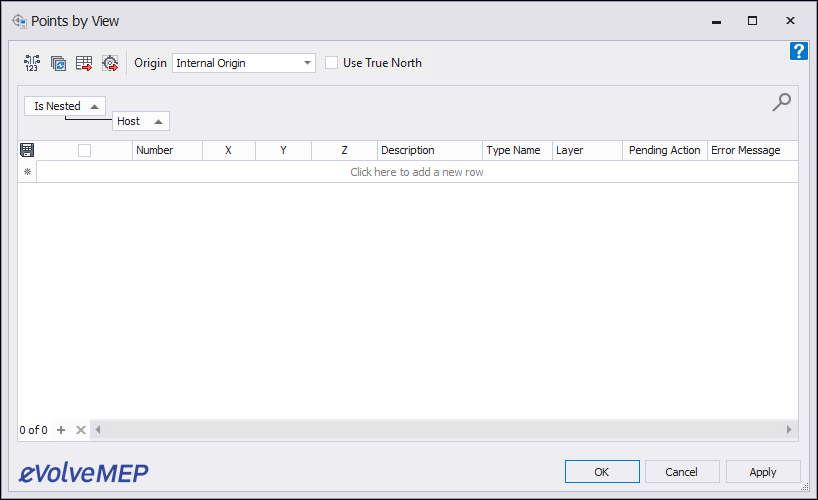

The Point Manager grid is a powerful tool to help group, sort, and filter available points. Please see the Using grids in eVolve software article for more information on utilizing grids.

Actions Menu

Multiple actions like numbering, updating descriptions, deleting, and exporting may be performed on points.

Auto-numbering Points
  1. From the grid, select the point(s) to auto-number.
  2. Click the Action on Checked menu and select Auto-Number.
  3. From the Auto-Number window, enter a starting value in the Starting Number dialog box and click OK.
  4. From the Point Manager window, click OK to apply and close the window or click Apply to perform additional actions.

Bulk updating point descriptions
  1. From the grid, select the point(s) for bulk update.
  2. Click the Action on Checked menu and select Bulk Update Description.
  3. From the Bulk Update Description window, enter a starting value in the Enter a Value for Description dialog box and click OK.
  4. From the Point Manager window, click OK to apply and close the window or click Apply to perform additional actions.
Deleting points
  1. From the grid, select the point(s) to delete.
  2. Click the Action on Checked menu and select Delete.
  3. From the eVolve electrical: Please Confirm window, click Yes.
  4. From the Point Manager window, click OK to apply and close the window or click Apply to perform additional actions.
Exporting points
  1. From the grid, select the point(s) to export.
  2. Click the Action on Checked menu and select Export Points.
  3. From the Save Point Export File window,
    1. navigate to the desired location to save the export file.
    2. Enter a value in the File name field.
    3. Verify the proper file type is selected in the Save as Type menu.
    4. Click OK.
  4. From the Point Manager window, click OK to close the window or continue performing additional actions.
