Auto Place Sleeves

eVolve Auto Sleeve Placement

eVolve allows users to automate the time-consuming process of placing sleeves. As with hanger placement, the eVolve sleeve feature is dynamic and driven by user defined rules and options under Sleeve Settings.

Features Summary

  • Rule based sleeve placement
  • Specify wall types, sleeve families, and over-sizing options
  • Option to choose certain links to evaluate
  • Automatic alignment locking for seamless connectivity to elements
  • Automatic Point Placement

To Use Sleeve Placement

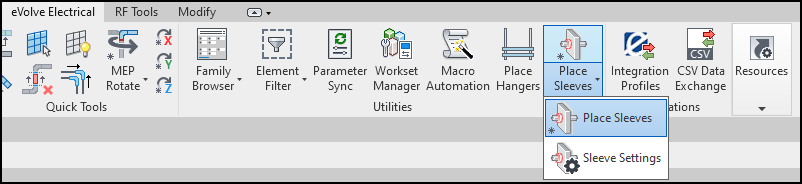

1.       Configure project Sleeve Settings

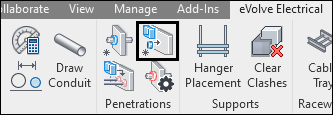

2.       Click the Sleeve Placement button

3.       Select the elements to place sleeves on

4.       Click Finish in the options bar

5.       Click Ok to review the support placement results
